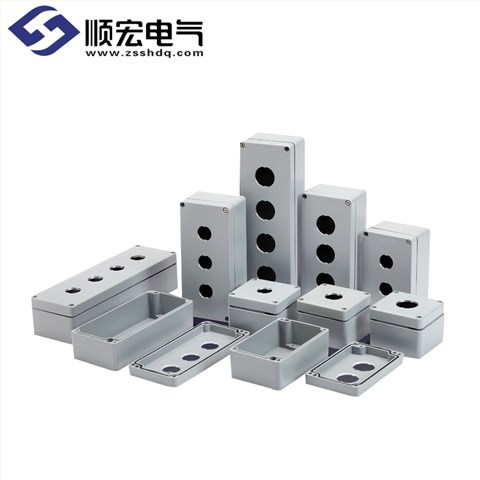

1. 高强度抵抗化学物质侵蚀。
2. 在盒盖上有22，25，30mm的孔。
| 防尘防水等级 | - |
|---|
| 型号规格(含箱盖) | 产品型号 | ∮ | Hole | |
|---|---|---|---|---|
| W X L X H(mm) | W X L X H(inch) | |||
| 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-2201 | 22 | 1 HOLE |
| 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-2201 | 22 | 1 HOLE |
| 80x125x70 | 3.14x4.92x2.75 | BC-AL-081306-2202 | 22 | 2 HOLE |
| 80x125x57 | 3.14x4.92x2.24 | BC-AL-081307-2202 | 22 | 2 HOLE |
| 80x175x57 | 3.14x6.88x2.24 | BC-AL-081806-2203 | 22 | 3 HOLE |
| 80x175x70 | 3.14x6.88x2.75 | BC-AL-081807-2203 | 22 | 3 HOLE |
| 80x250x70 | 3.14x9.84x2.75 | BC-AL-082506-2204 | 22 | 4 HOLE |
| 80x250x57 | 3.14x9.84x2.24 | BC-AL-082507-2204 | 22 | 4 HOLE |
| 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-2501 | 25 | 1 HOLE |
| 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-2501 | 25 | 1 HOLE |
| 80x125x70 | 3.14x4.92x2.75 | BC-AL-081306-2502 | 25 | 2 HOLE |
| 80x125x57 | 3.14x4.92x2.24 | BC-AL-081307-2502 | 25 | 2 HOLE |
| 80x175x57 | 3.14x6.88x2.24 | BC-AL-081806-2503 | 25 | 3 HOLE |
| 80x175x70 | 3.14x6.88x2.75 | BC-AL-081807-2503 | 25 | 3 HOLE |
| 80x250x70 | 3.14x9.84x2.75 | BC-AL-082506-2504 | 25 | 4 HOLE |
| 80x250x57 | 3.14x9.84x2.24 | BC-AL-082507-2504 | 25 | 4 HOLE |
| 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-3001 | 30 | 1 HOLE |
| 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-3001 | 30 | 1 HOLE |
| 80x125x70 | 3.14x4.92x2.75 | BC-AL-081306-3002 | 30 | 2 HOLE |
| 80x125x57 | 3.14x4.92x2.24 | BC-AL-081307-3002 | 30 | 2 HOLE |
| 80x175x57 | 3.14x6.88x2.24 | BC-AL-081806-3003 | 30 | 3 HOLE |
| 80x175x70 | 3.14x6.88x2.75 | BC-AL-081807-3003 | 30 | 3 HOLE |
| 80x250x70 | 3.14x9.84x2.75 | BC-AL-082506-3004 | 30 | 4 HOLE |
| 80x250x57 | 3.14x9.84x2.24 | BC-AL-082507-3004 | 30 | 4 HOLE |
|
Dimensions (mm) |
Hole | A | B | C | D | E | F |
图纸 (dwg) |
图纸 (3d) |
图纸 (pdf) |
|---|---|---|---|---|---|---|---|---|---|---|
| 80x75x57 | 1 | 75 | ||||||||
| 80x75x70 | 1 | 75 | ||||||||
| 80x125x70 | 2 | 125 | ||||||||
| 80x125x57 | 2 | 125 | ||||||||
| 80x175x57 | 3 | 175 | ||||||||
| 80x175x70 | 3 | 175 | ||||||||
| 80x250x70 | 4 | 250 | ||||||||
| 80x250x57 | 4 | 250 | ||||||||
| 80x75x57 | 1 | 75 | ||||||||
| 80x75x70 | 1 | 75 | ||||||||
| 80x125x70 | 2 | 125 | ||||||||
| 80x125x57 | 2 | 125 | ||||||||
| 80x175x57 | 3 | 175 | ||||||||
| 80x175x70 | 3 | 175 | ||||||||
| 80x250x70 | 4 | 250 | ||||||||
| 80x250x57 | 4 | 250 | ||||||||
| 80x75x57 | 1 | 75 | ||||||||
| 80x75x70 | 1 | 75 | ||||||||
| 80x125x70 | 2 | 125 | ||||||||
| 80x125x57 | 2 | 125 | ||||||||
| 80x175x57 | 3 | 175 | ||||||||
| 80x175x70 | 3 | 175 | ||||||||
| 80x250x70 | 4 | 250 | ||||||||
| 80x250x57 | 4 | 250 |
