产品品牌：派特莱PATLITE[日本]
产品名称：防爆信号灯
产品型号：LR6-EX
使用环境：气体、粉尘防爆，适用于2区及22区
符合认证： - II 3 G Ex nA IIC T4 Gc, II 3 D Ex tc IIIC T80°C Dc - EN 60079-0:2012 / A11:2013, EN 60079-15:2010, EN 60079-31:2014 - 2014/34/EU (ATEX) - CE
防护等级：IP65

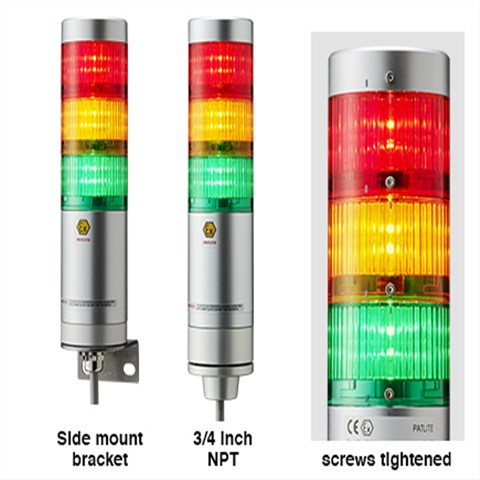

LR6-EX
Explosion Proof Signal Tower

Explosion Proof Signal Tower featuring an LED light that is versatile and energy-efficient. The vertical and horizontal cut lenses in combination with a double-reflection system enhances the LED light diffusion to create a unique, full and brilliant light. The lenses and main body are made of strong synthetic materials with characteristics to withstand harsh environments. In addition to its “continuous lighting” condition, the Signal Tower can also be ordered with flashing / non-flashing functions.

产品概述：

特点

• Explosion Proof for gas and dust


• Suitable for Zone 2 and Zone 22


• CE compliance in accordance to ATEX


• A Uniform 360° Light-Emitting Design


• Unique Method of Fully Enclosed Sound Module


• 1 to 5 tiers are available


• 3/4” NPT adapter for pole mount is available as an option


• Available with “flashing/non flashing” and four audible buzzer alarm sounds


• Ingress protection of IP65


• Wall mount or 3/4" NPT moun

型号?规格

尺寸	- 60mm diameter
额定电压	- 24V DC
功能	- Continuous Onl8y - Continuous, Flashing, 4 Audible Alarms - Dry contact closure such as switches or relay contacts - Open-collector transistor - Direct voltage control for DC24V, continuous and Alarm functions only
安装方式	- Wall Mount - Direct Mount
主体形状	- Pre-assembled, pre-wired - Factory sealed cable, 8mm, length 3 meter
主体颜色	- Body: Silver
层数	- Up to 5 modules can be stacked
模块颜色	- 4 sounds available: No. 1: Rapid Intermittent No. 2: Continuous No. 3: Rapid Hi-low No. 4: Sweep
蜂鸣器类型	- 4 sounds available: No. 1: Rapid Intermittent No. 2: Continuous No. 3: Rapid Hi-low No. 4: Sweep
符合认证	-II 3 G Ex nA IIC T4 Gc, II 3 D Ex tc IIIC T80°C Dc - EN 60079-0:2012 / A11:2013, EN 60079-15:2010, EN 60079-31:2014 - 2014/34/EU (ATEX) - CE
防护等级	- IP65
